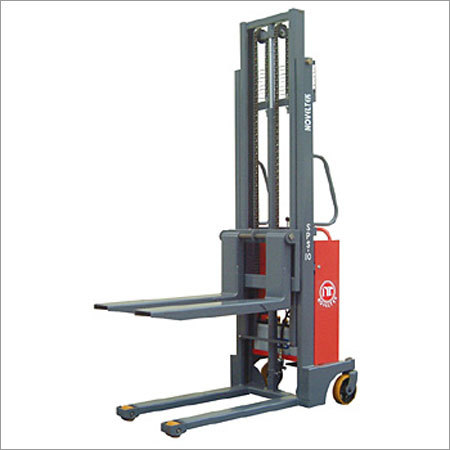

Powered Pallet Stacke

Powered Pallet Stacke
Powered Pallet Stacke
Product Code : SPS-10-12-15-10W-12W-15W
Product Description

Technical Specifications:

Item



SPS-10

Mast Type



Telescopic

Load Capacity



1000 kg

2200 lb

Load Center



450 mm

17.72”

Max. Fork Height

A

2500 mm

98.37”

Service Weight



320 kg

740 lb

Battery



135AH/12V other



options are available

Charging Current(220V)

12A(BUILD-IN)

Lifting Motor



1.5KW/12V

Fork Wheels



Φ80×70 mm

Φ3.15"×2.75" mm

Material



Poly-urethane With Bearing

Steering and Caster



Φ180×50 mm

Φ7.09"×2.00" mm

Wheel Material



Poly-urethane With Bearing

Overall Length

B

1450 mm

57.09”

Overall Width

C

770 mm

30.31”

Max. Mast Height

D

3030 mm

119.29”

Min. Mast Height

E

1780 mm

70.08”

Fork Length

F

900 mm

35.43”

Each Fork Width

G

150 mm

5.91”

Min. Fork Height

H

90 mm

3.54”

Fork Thickness

J

65 mm

2.56”

Distance of Forks

K

330-750 mm

13.00”-29.53”

Straddle length

L

820 mm

32.28”

Each Straddle length

M

100 mm

3.84”

Distance of Straddle

N

690 mm

27.17”

Turning Radius

P

1350 mm

53.15”

Length of Body

Q

400 mm

15.75”

Straddle Height



80

3.15”
